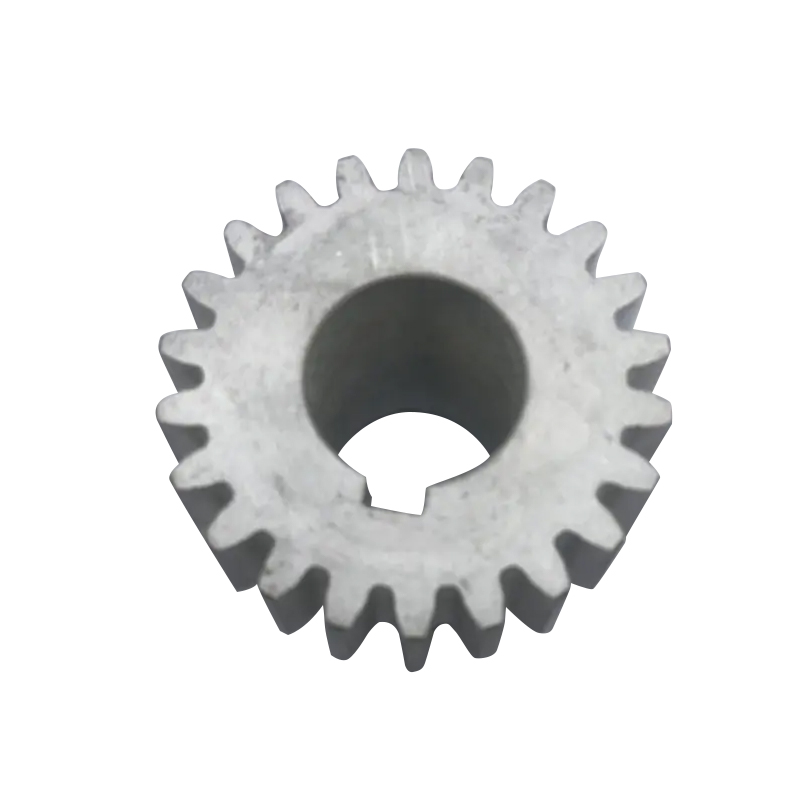

High precision straight teeth rack pinion gear

Design Features
The design of the High Precision Straight Teeth Rack Pinion Gear focuses on achieving high accuracy and reliability. The straight teeth on both the rack and pinion are carefully machined to ensure uniform tooth profiles and precise pitch spacing. This precision allows for backlash, which is the free play between the meshed gears. The rack is typically made from high-quality steel and heat-treated to enhance its hardness and wear resistance. The pinion is also constructed from durable materials, often with a hardened surface to withstand the stresses of continuous operation.

Manufacturing Process
The manufacturing process of the high-precision straight Teeth Rack Pinion Gear involves several key steps. The raw materials are carefully selected and tested for quality. The rack is then cut to the required length and undergoes a series of machining operations to form the straight teeth. Advanced grinding techniques are used to achieve precise tooth geometry and surface finish. The pinion is manufactured through precision machining and heat treatment processes to ensure its dimensional accuracy and mechanical properties. Both components are then inspected using high-precision measuring equipment to verify their conformity to tight tolerances.

Applications
The High Precision Straight Teeth Rack Pinion Gear is utilized in a wide range of industries due to its ability to provide precise linear movement. In the automotive industry, it is used in steering systems to convert the rotational motion of the steering wheel into the linear motion needed to turn the wheels. In machine tools, such as milling machines and lathes, it enables the accurate positioning of the cutting tools. In robotics, it is employed in the joints of robotic arms to achieve precise control of movement. Additionally, it is used in precision conveyors for material handling applications, ensuring smooth and accurate transport of goods.

Advantages
The High Precision Straight Teeth Rack Pinion Gear offers several advantages over other linear motion systems. Its high precision ensures accurate positioning, which is crucial in applications requiring tight tolerances. The direct meshing of the rack and pinion provides a high degree of efficiency, as there is energy loss due to friction. The system is also relatively simple in design, making it easy to install and maintain. Furthermore, its robust construction allows it to operate reliably in demanding environments.

Maintenance and Service
To ensure the long-term performance of the High Precision Straight Teeth Rack Pinion Gear, regular maintenance is essential. This includes checking for wear and tear on the teeth, lubricating the gear system to reduce friction and prevent corrosion, and inspecting the alignment of the rack and pinion. Proper maintenance can significantly extend the service life of the gear system and reduce the risk of unexpected failures. In case of any issues, prompt repair or replacement of damaged components is recommended to maintain the precision and reliability of the High Precision Straight Teeth Rack Pinion Gear.

The High Precision Straight Teeth Rack Pinion Gear is a vital component in many mechanical systems, offering precise linear motion control and high reliability. Its precise design, robust manufacturing process, and wide range of applications make it a better choice for various industries. By understanding its features, advantages, and maintenance requirements, users can effectively utilize the High Precision Straight Teeth Rack Pinion Gear to achieve good performance in their applications.
